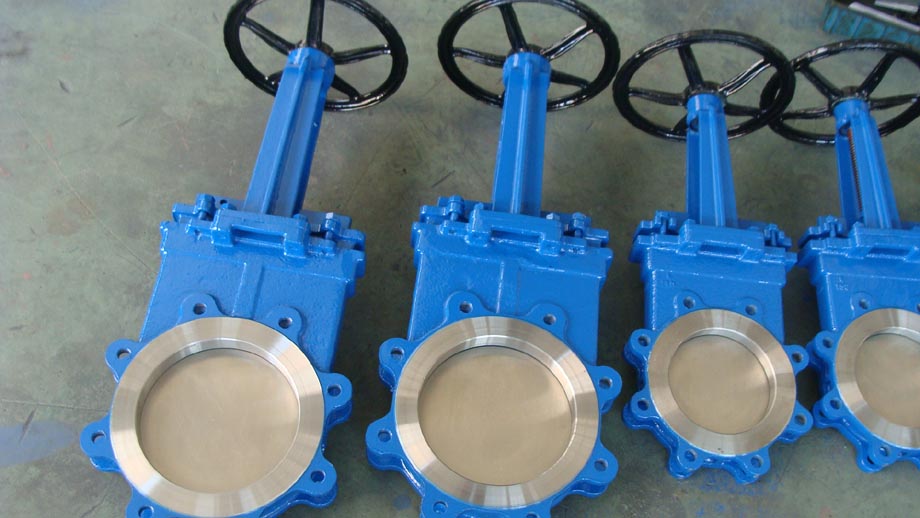

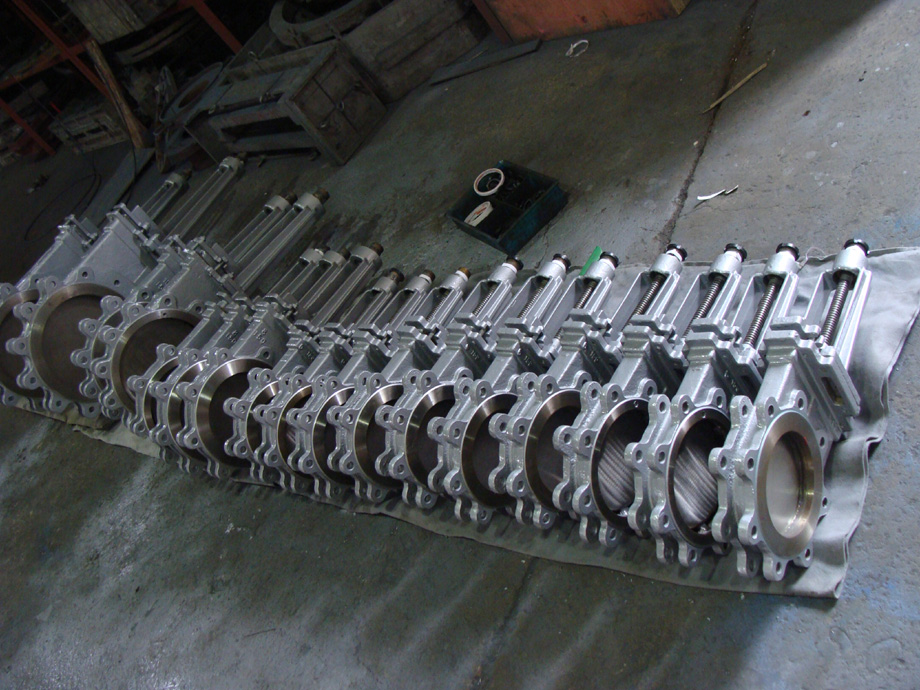

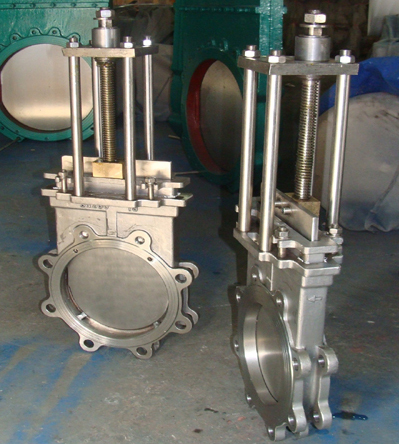

Full Lug KGV

full lug knife gate valve

Product description: 1.PRESSURE: PN10/PN16/JIS10K/ANSI 150 2.LUG KNIFE GATE VALVE, UNI-DIRECTIONAL DESIGN & MANUFACTURE: MSS SP 81, JB/T8691 FACE TO FACE: MSS SP 81,EN588-1.
INQUIRY

MAX.WORKING PRESSURE:

DN50-DN300: 10 BAR

DN350-DN450: 6 BAR

DN500-DN600: 4 BAR

DN700-DN1200: 2 BAR

BODY: WCB/LCB/CF8/CF8M ETC.

GATE: SS201/SS304/SS316/DUPLEX STEEL

STEM: SS201/SS304/SS316/SS420/DUPLEX STEEL

SEAT: EPDM/NBR/PTFE/VITON/METAL

RISING STEM OR NO-RISING STEM
