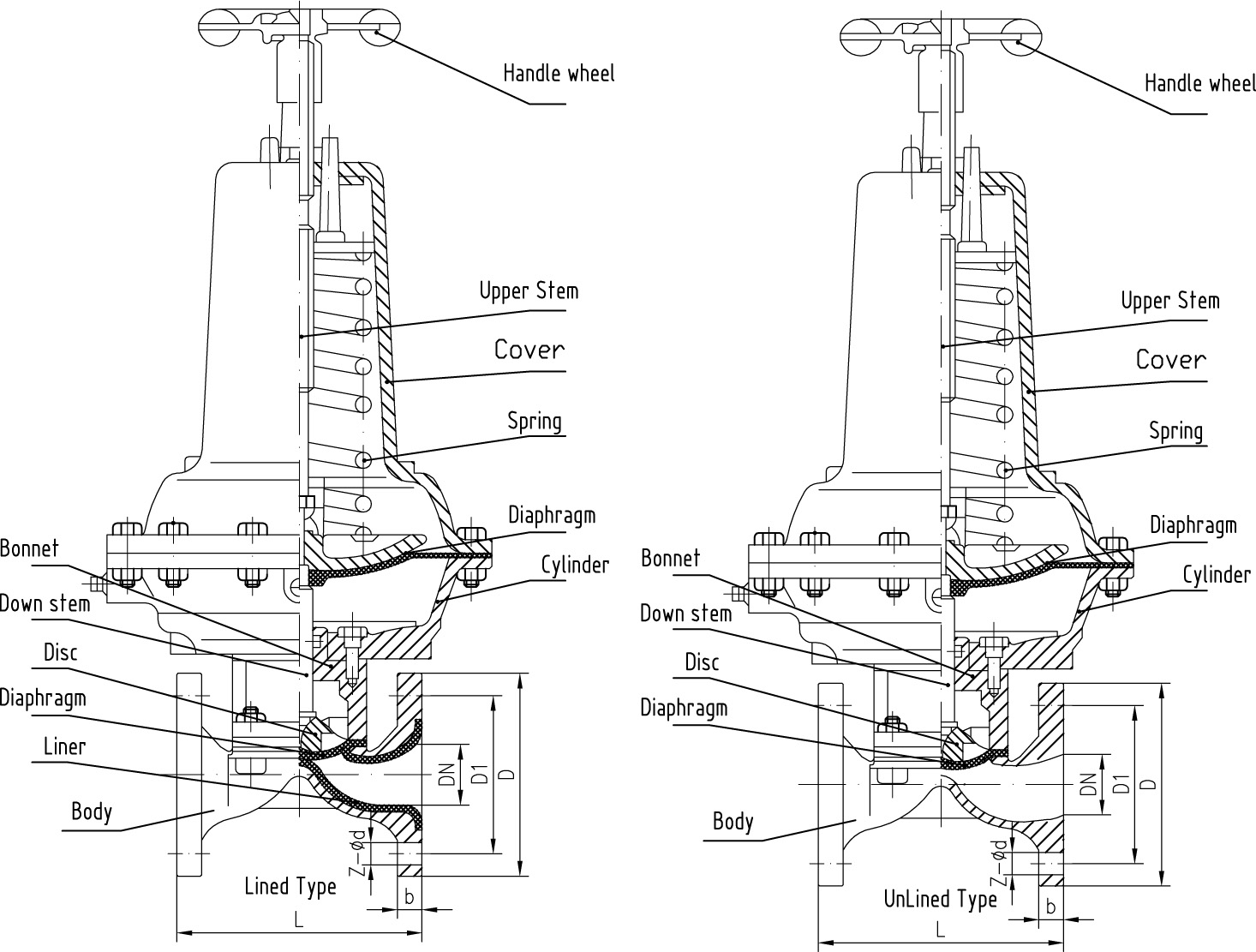

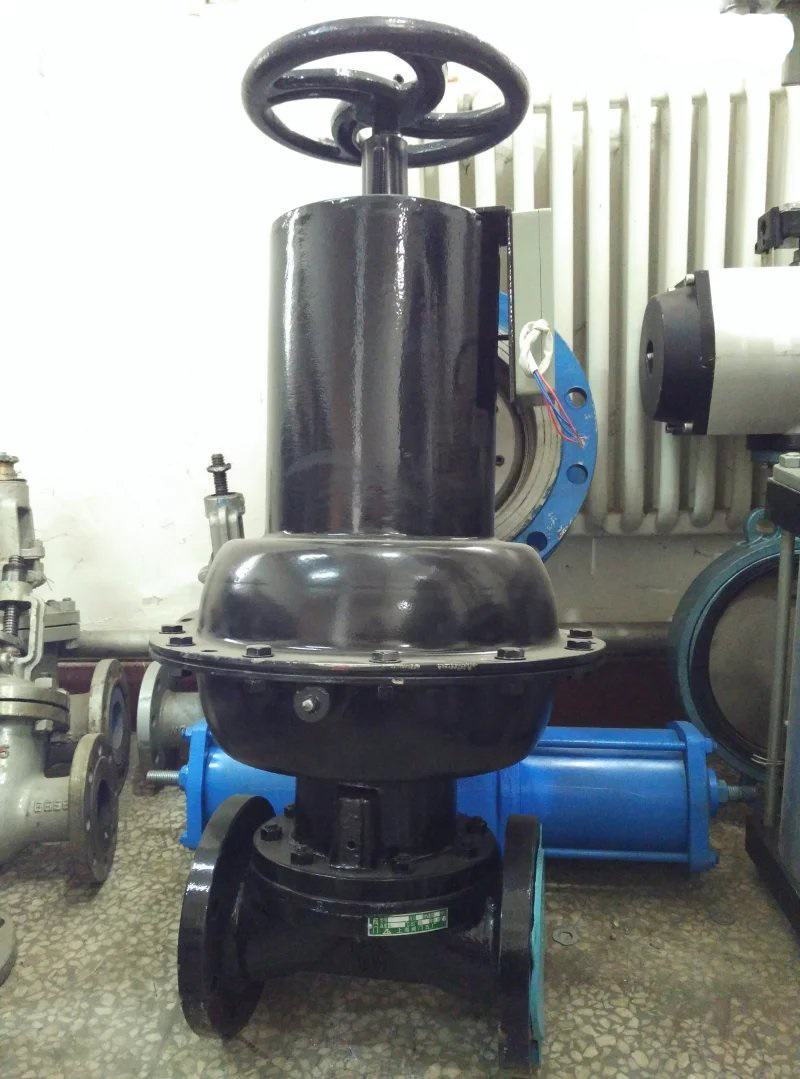

Pneumatic diaphragm valve

Product description: PRESSURE: PN6-PN16 SIZE: DN10-DN400
INQUIRY

LINER MATERIAL: NBR, EPDM, PTFE ETC. WORKING TEMPERATURE: 80℃-120℃ FLANGE DRILLED: DIN, BS, JIS B2212, ANSI B 16.5 MATERIAL: WCB, GG25,GGG40, CF8, CF8M, Etc.

DESIGN AND MANUFACTURE: BS5156, EN588-1

FACE TO FACE: BS5156,EN588-1

TEST: BS6755, DIN3230,API 598

Cylinder: Normally Close or Normally Open
