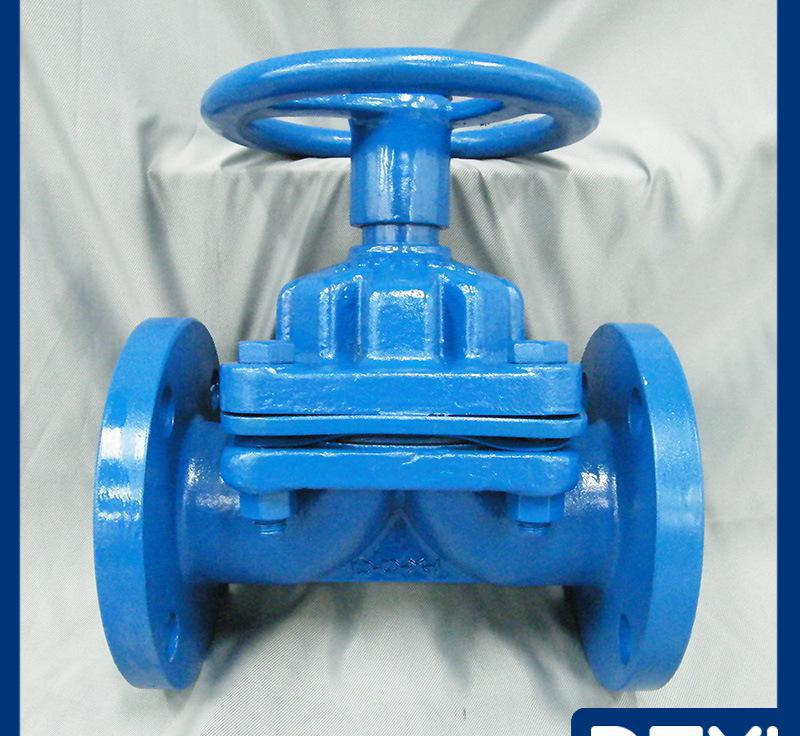

weir diaphragm valve

Product description: PRESSURE: PN6-PN16 SIZE: DN10-DN400
INQUIRY

LINER MATERIAL: NBR, EPDM, PTFE ETC. WORKING TEMPERATURE: 80℃-120℃ FLANGE DRILLED: DIN, BS, JIS B2212, ANSI B 16.5 MATERIAL: WCB, GG25,GGG40, CF8, CF8M, Etc

BRITISH STANDARD BS5156 DIPHARAGM VALVE

DESIGN AND MANUFACTURE: BS5156

FACE TO FACE: BS5156

FLANGE END: BS4504

TEST: BS6755

DIN DIPHRAGM VALVE EN588-1

DESIGN & MANUFACTURE: EN588-1

FACE TO FACE: EN588-1

TEST: DIN3230

FLANGE: EN1092-2

PREVIOUS：Pneumatic diaphragm valve NEXT：straight through diaphragm valve
