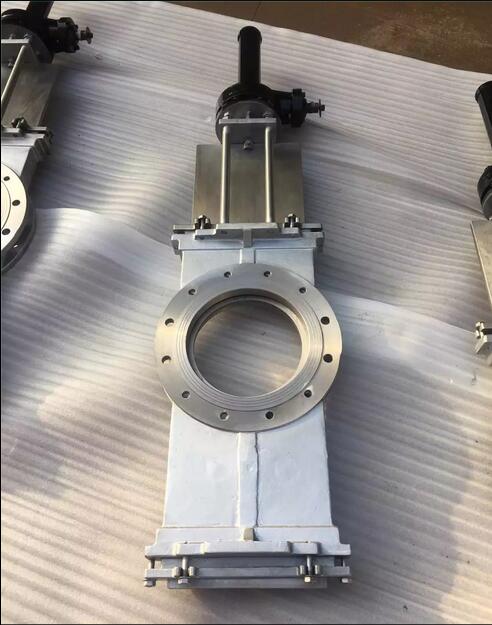

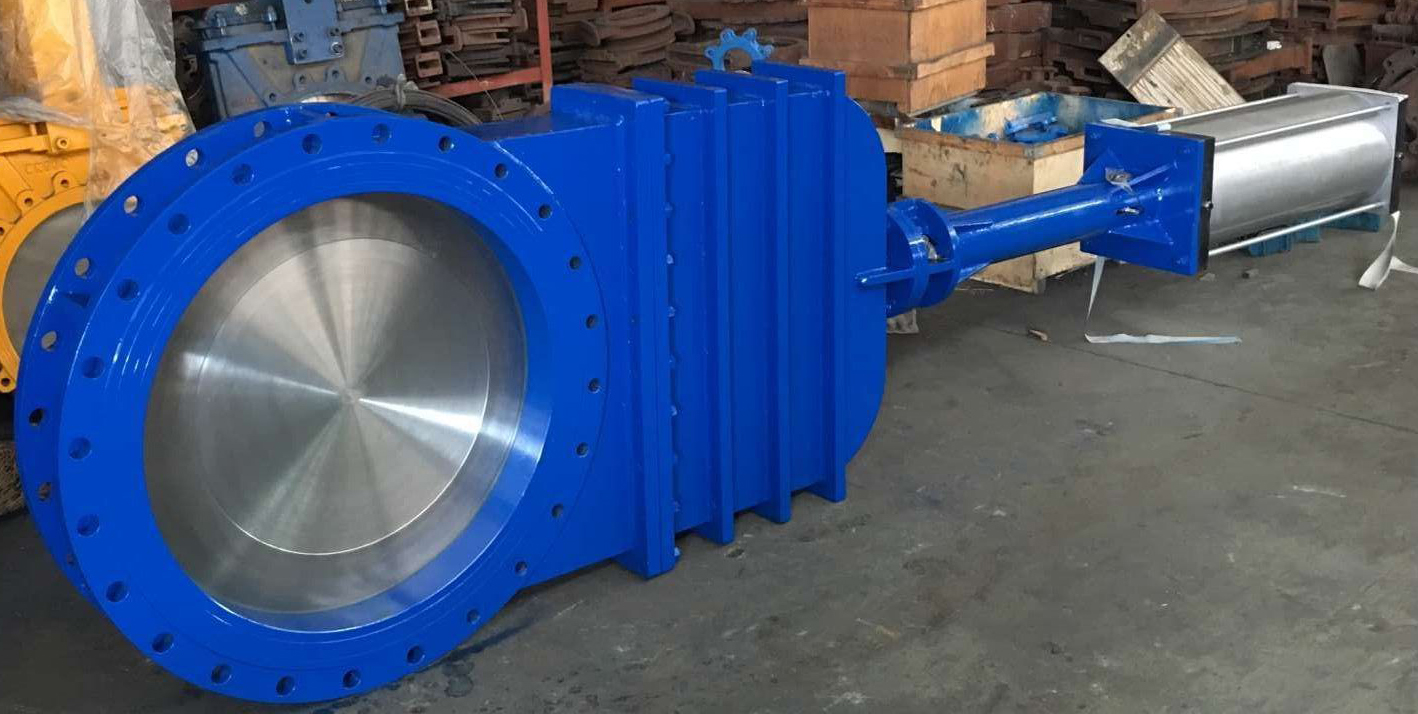

Through conduit KGV

Through conduit Knife gate valve

Product description: 1.PRESSURE: PN10/PN16/JIS10K/ANSI 150 2.THROUGH CONDUIT KNIFE GATE VALVE, UNI-DIRECTIONAL DESIGN & MANUFACTURE: MSS SP 81, JB/T8691 FACE TO FACE: MSS SP 81,EN588-1.
INQUIRY

MAX.WORKING PRESSURE:

DN50-DN250: 10 BAR

DN300-DN450: 6 BAR

DN500-DN600: 4 BAR

BODY: WCB/LCB/CF8/CF8M ETC.

GATE: SS201/SS304/SS316/DUPLEX STEEL

STEM: SS201/SS304/SS316/SS420/DUPLEX STEEL

SEAT: EPDM/NBR/PTFE/VITON/METAL

PREVIOUS：Bolted bonnet Knife gate valve NEXT：Square knife gate valve
