Square KGV

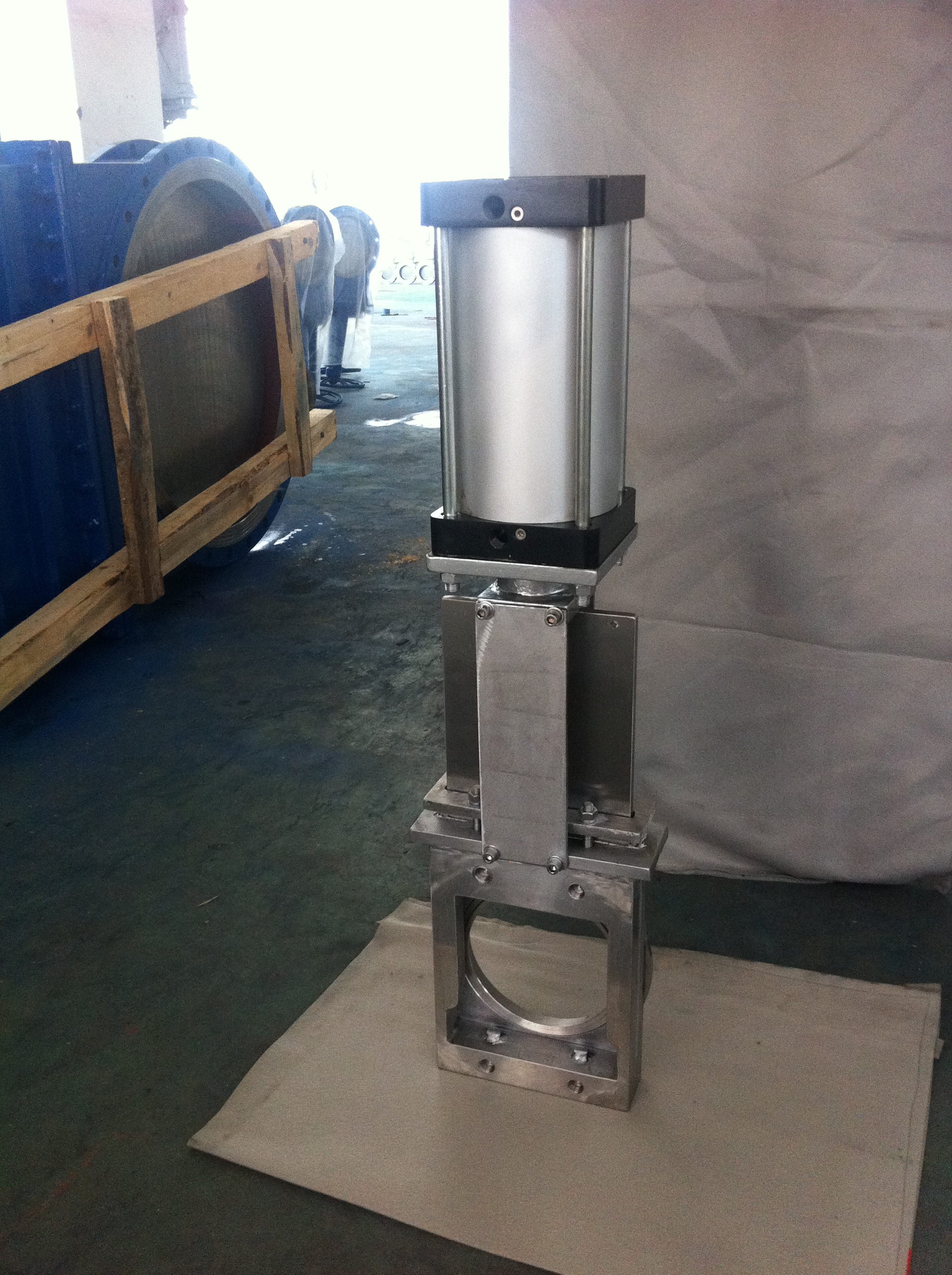

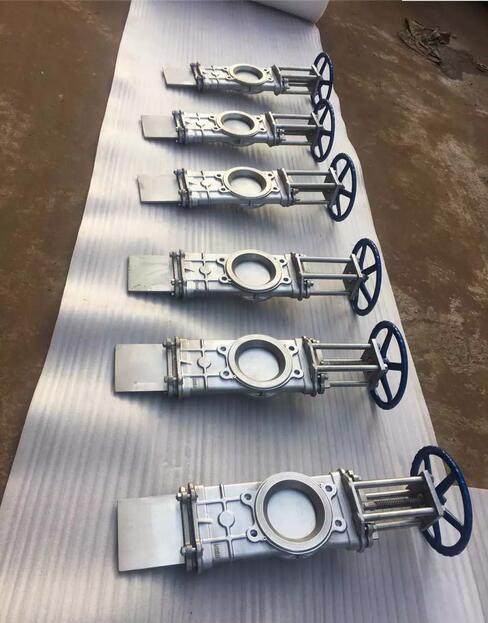

Square knife gate valve

Product description: 1.PRESSURE: PN10/PN16/JIS10K/ANSI 150 2.SQUARE KNIFE GATE VALVE, UNI-DIRECTIONAL DESIGN & MANUFACTURE: JB/T8691 FACE TO FACE: MFGS
INQUIRY

MAX.WORKING PRESSURE:

DN50-DN300: 2 BAR

DN350-DN600: 1 BAR

BODY: CARBON STEEL, STAINLESS STEEL ETC.

GATE: SS201/SS304/SS316/DUPLEX STEEL

STEM: SS201/SS304/SS316/SS420/DUPLEX STEEL

SEAT: EPDM/NBR//VITON/METAL

PREVIOUS：Through conduit Knife gate valve NEXT：Deflector Cone Knife gate valve
